| 品牌 |
名称 |
型号 |
货期 |
报价 |
会员价
|
| 美国泛美 |
探头和附件 |
各种型号 |
期货 |
¥4680 |
请登陆
|
|
|
|
|
| 1.产品概述 |
| NDT为用户提供系列完备、用于腐蚀测厚仪的双晶片和单晶片探头。该系列大部分探头都能与自动探头识别功能兼容，因而提高了检测效能。由于备有各种不同频率、不同大小以及承受温度特性不同的探头，因此对于大部分腐蚀探测应用都能提供现成的解决方案。请注意：如需购买TP103证书，需额外付费。 |
| 2.功能特点 |
|
| 3.技术参数 |

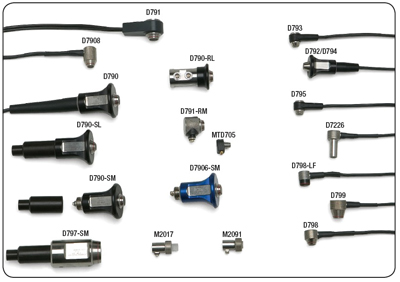

Gage Dual Transducers
|
Transducer
Part # |
Freq. |
Tip Diameter |
Connector |
Range in Steel |
Temp Range |
|
MHz |
in. |
mm |
Type |
Location |
in |
mm |
°F |
°C |
|
D790 |
5.0 |
0.434 |
11 |
Potted |
Straight |
0.040 - 20 |
1.0 - 508 |
-5 to 932 |
-20 to 500 |
|
D790-SM |
5.0 |
0.434 |
11 |
Microdot® |
Straight |
0.040 - 20 |
1.0 - 508 |
-5 to 932 |
-20 to 500 |
|
D790-SL |
5.0 |
0.434 |
11 |
Lemo® |
Straight |
0.040 - 20 |
1.0 - 508 |
-5 to 932 |
-20 to 500 |
|
D790-RL |
5.0 |
0.434 |
11 |
Lemo |
Rt Angle |
0.040 - 20 |
1.0 - 508 |
-5 to 932 |
-20 to 500 |
|
D791 |
5.0 |
0.434 |
11 |
Potted |
Rt Angle |
0.040 - 20 |
1.0 - 508 |
-5 to 932 |
-20 to 500 |
|
D791-RM |
5.0 |
0.434 |
11 |
Microdot |
Rt Angle |
0.040 - 20 |
1.0 - 508 |
-5 to 752 |
-20 to 400 |
|
D792 |
10 |
0.283 |
7.2 |
Potted |
Straight |
0.020 - 1 |
0.5 - 25 |
32 to 122 |
0 to 50 |
|
D793 |
10 |
0.283 |
7.2 |
Potted |
Rt Angle |
0.020 - 1 |
0.5 - 25 |
32 to 122 |
0 to 50 |
|
D794 |
5.0 |
0.283 |
7.2 |
Potted |
Straight |
0.030 - 2 |
0.75 - 50 |
32 to 122 |
0 to 50 |
|
D795 |
5.0 |
0.283 |
7.2 |
Potted |
Rt Angle |
0.030 - 2 |
0.75 - 50 |
32 to 122 |
0 to 50 |
|
D797 |
2.0 |
0.900 |
22.9 |
Potted |
Rt Angle |
0.150 - 25 |
3.8 - 635 |
-5 to 752 |
-20 to 400 |
|
D797-SM |
2.0 |
0.900 |
22.9 |
Microdot |
Straight |
0.150 - 25 |
3.8 - 635 |
-5 to 752 |
-20 to 400 |
|
D7226 |
7.5 |
0.350 |
8.9 |
Potted |
Rt Angle |
0.028 - 4 |
0.71 - 100 |
-5 to 300 |
-20 to 150 |
|
D798-LF |
7.5 |
0.350 |
8.9 |
Potted |
Rt Angle |
0.028 - 4 |
0.71 - 100 |
-5 to 300 |
-20 to 150 |
|
D798 |
7.5 |
0.283 |
7.2 |
Potted |
Rt Angle |
0.028 - 4 |
0.71 - 100 |
-5 to 300 |
-20 to 150 |
|
D798-SM |
7.5 |
0.283 |
7.2 |
Microdot |
Straight |
0.028 - 4 |
0.71 - 100 |
-5 to 300 |
-20 to 150 |
|
D799 |
5.0 |
0.434 |
11 |
Potted |
Rt Angle |
0.040 - 20 |
1.0 - 508 |
-5 to 300 |
-20 to 150 |
|
MTD705 |
5.0 |
0.200 |
5.1 |
Lepra/Con |
Rt Angle |
0.040 - 0.75 |
1.0 - 19 |
32 to 122 |
0 to 50 |
Other Thickness Gage Transducers
• For use with 37DL PLUS
|
Transducer
Part # |
Freq. |
Tip Diameter |
Transducer Type |
Connector |
Range in Steel |
Temp. Range |
|
|
MHz |
in. |
mm |
|
Type |
Location |
in |
mm |
°F |
°C |
|
V260-SM |
15 |
0.080 |
2 |
Sonopen® |
Microdot® |
Straight |
0.02 - 0.400 |
0.5 - 10 |
32 to 122 |
0 to 50 |
|
V260-RM |
15 |
0.080 |
2 |
Sonopen |
Microdot |
Right Angle |
0.02 - 0.400 |
0.5 - 10 |
32 to 122 |
0 to 50 |
|
V260-45 |
15 |
0.080 |
2 |
Sonopen |
Microdot |
45˚ Handle |
0.02 - 0.400 |
0.5 - 10 |
32 to 122 |
0 to 50 |
|
D7906-SM* |
5.0 |
0.434 |
11 |
Thru-Coat Dual |
Microdot |
Straight |
0.040 - 2.0 |
1.0 - 50 |
32 to 122 |
0 to 50 |
|
D7908* |
7.5 |
0.283 |
7.2 |
Thru-Coat Dual |
Potted |
Potted |
0.040 - 1.5 |
0.71 - 37 |
32 to 122 |
0 to 50 |
|
M2017 |
20 |
0.250 |
6.35 |
Internal Oxide Scale |
Microdot |
Right Angle |
Steel:
0.020 - 0.50
Oxide:
0.010 - 0.050 |
Steel:
0.5 - 12
Oxide:
0.25 - 1.25 |
32 to 122 |
0 to 50 |
|
M2091 |
20 |
0.250 |
6.35 |
Replaceable Delay Line Shear Wave |
Microdot |
Right Angle |
Steel:
0.020 - 0.50
Oxide:
0.006 - 0.050 |
Steel:
0.5 - 12
Oxide:
0.150 - 1.25 |
32 to 122 |
0 to 50 |
|
E110-SB† |
- |
1.25 |
28.5 |
EMAT |
BNC |
Straight |
0.080 - 5 |
2.0 - 125 |
32 to 176 |
0 to 80 |
* Compatible with MG2-XT and MG2-DL
† Adaptor required for E110 (part number 1/2XA/E110).
Gage Dual Cables
|
Cable Part Number |
For Use With |
Length |
Cable Type |
Plug Type |
|
|
|
feet |
meters |
|
|
|
|
LCMD-316-5B |
D790-SM |
5.0 |
1.5 |
Standard |
Straight |
|
|
RLCMD-316-5B |
D790-SM |
5.0 |
1.5 |
Standard |
Rt Angle |
|
|
LCMD-178-5B SSA |
D790-SM |
5.0 |
1.5 |
Armored |
Straight |
|
|
RLCMD-178-5B SSA |
D790-SM |
5.0 |
1.5 |
Armored |
Rt Angle |
|
|
LCLD-316-5G |
D790-RL |
5.0 |
1.5 |
Standard |
Straight |
|
|
LCLD-316-5H |
D790-SL |
5.0 |
1.5 |
Standard |
Straight |
|
|
LCMD-316-5C |
D791-RM |
5.0 |
1.5 |
Standard |
Straight |
|
|
LCMD-316-5D |
D797-SM |
5.0 |
1.5 |
Standard |
Straight |
|
|
LCMD-316-5J |
D798-SM |
5.0 |
1.5 |
Standard |
Straight |
|
|
LCMD-316-5L |
D7906-SM |
5.0 |
1.5 |
Standard |
Straight |
|
|
LCLPD-78-5 |
MTD705 |
5.0 |
1.5 |
Standard |
Straight |
|
|
LCM-74-4 |
V260-SM, V260-RM, V260-45, M2017 |
4.0 |
1.2 |
Standard |
- |
|
|
|
LCM-188-4 SSA |
V260-SM, V260-RM, V260-45, M2017 |
4.0 |
1.2 |
Armored |
- |
|
|
|
LCB-74-4 |
E110-SB |
4.0 |
1.2 |
Standard |
- | |
| 4.基本配置 |
|
| 5.可选附件 |
|
|
|
|
